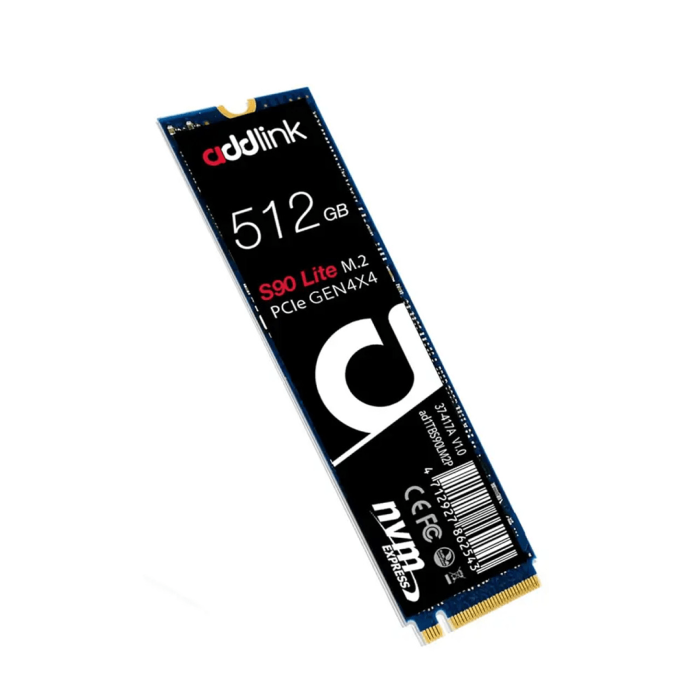

ADDLINK SSD 512GB M.2 GEN4 NVME (UP TO R:5000,W:2500)
ADDLINK SSD 512GB M.2 GEN4 NVME (UP TO R:5000,W:2500)
Description
Solid-State-Drive
| Capacity: |
512 GB |
| Variants: |
512 GB 1 TB 2 TB 4 TB |
| Overprovisioning: |
35.2 GB / 7.4 % |
| Production: |
Active |
| Released: |
Jun 22nd, 2022 |
| Price at Launch: |
39 USD |
| Part Number: |
ad512GBS90LTM2P |
| Market: |
Consumer |
Physical
| Form Factor: |
M.2 2280 (Single-Sided) |
| Interface: |
PCIe 4.0 x4 |
| Protocol: |
NVMe 1.4 |
| Power Draw: |
Unknown |
Controller
| Manufacturer: |
Phison |
| Name: |
PS5021-E21T |
| Architecture: |
ARM 32-bit Cortex-R5 |
| Core Count: |
Triple-Core |
| Frequency: |
1,000 MHz |
| Foundry: |
TSMC |
| Process: |
12 nm |
| Flash Channels: |
4 @ 1,600 MT/s |
| Chip Enables: |
4 |
| Controller Features: |
HMB (enabled) |
NAND Flash
| Manufacturer: |
Micron |
| Name: |
B47R FortisFlash |
| Type: |
TLC |
| Technology: |
176-layer |
| Speed: |
1200 MT/s .. 1600 MT/s |
| Capacity: |
4 chips @ 1 Tbit |
| ONFI: |
4.1 |
| Topology: |
Replacement Gate |
| Die Size: |
50 mm²
(10.2 Gbit/mm²) |
| Dies per Chip: |
2 dies @ 512 Gbit |
| Planes per Die: |
4 |
| Decks per Die: |
2 |
| Word Lines: |
195 per NAND String
90.3% Vertical Efficiency |
| Program Time (tProg): |
492 µs |
| Block Erase Time (tBERS): |
15 ms |
| Die Write Speed: |
130 MB/s |
| Endurance:
(up to) |
3000 P/E Cycles
(40000 in SLC Mode) |
| Page Size: |
16 KB |
| Block Size: |
2112 Pages |
| Plane Size: |
550 Blocks |
DRAM Cache
| Type: |
None |
| Host-Memory-Buffer (HMB): |
64 MB |
Performance
| Sequential Read: |
5,000 MB/s |
| Sequential Write: |
2,500 MB/s |
| Random Read: |
250,000 IOPS |
| Random Write: |
350,000 IOPS |
| Endurance: |
Unknown |
| Warranty: |
5 Years |
| MTBF: |
1.5 Million Hours |
| SLC Write Cache: |
Yes |
