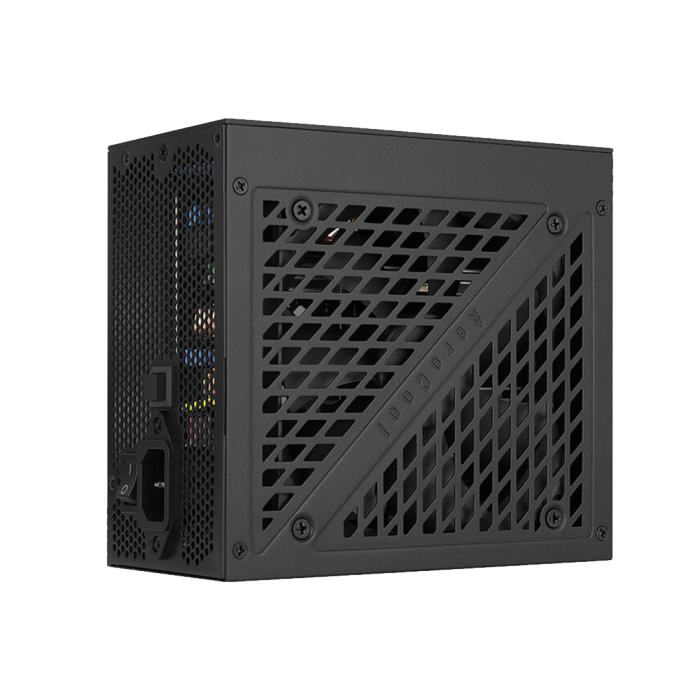

AEROCOOL MIRAGE GOLD 850W FULLY MODULAR

SPECS

Specifications

AC Input	100-240Vac 11-5.5A 47-63Hz
DC Output	+3.3V	+5V	+12V	-12V	+5VSB
Max Current	20A	20A	70A	0.3A	2.5A
Max.Combined Power	130W		840W	3.6W	12.5W
Max.Combined Power	850W
EAN CODE	4711099472604

UP TO 90%+ EFFICIENCY

80Plus Gold Certified for up to 90%+ efficiency, delivering maximum efficiency performance.

INFINITY MIRROR RGB DESIGN

Featuring a glass mirror design with a single RGB LED strip, the Mirage Gold achieves an infinity effect with what seems like endless RGB strips to deliver a truly unique and mesmerizing lighting experience.

ADDRESSABLE RGB COMPATIBLE

Stylize and personalize your lighting experience with 16.8 million colors by connecting your power supply to your Addressable RGB motherboard. To switch between motherboard and button control:

Make sure PSU is connected to motherboard’s ARGB header
Hold button on PSU for 3 seconds
Control will switch from PSU to motherboard.

FULL MODULAR POWER SUPPLY

Fully modular design provides you with full control of your cables, allowing for super efficient cable management and improved air flow to achieve the best possible cooling performance.

BUILT-IN 105°C JAPANESE CAPACITORS

Built-in 105°C Japanese capacitors provide uncompromised performance, reliability and durability even under the most demanding conditions.

DC-TO-DC CONVERSION CIRCUIT

Built-in DC-to-DC conversion circuit for higher efficiency and tight voltage regulation even under heavy cross-loading conditions.

OPTIMIZED THERMAL FAN SPEED CONTROL

Optimized fan speed allows for near inaudible fan noise and silent PSU operation. Smart thermal fan control keeps the fan running at startup speed before reaching 60% load at 40°C ambient temperatures.

TESTED FOR RELIABILITY AND PERFORMANCE

Having undergone test after test under strict conditions and the highest standards of quality, the Mirage Gold ensures premium reliability, durability, and performance.

ACTIVE POWER FACTOR CORRECTION

Built-in APFC providing higher voltage stabilization and lower power consumption (Active Power Factor Correction rate > 0.9.

CONVENIENT CABLE MANAGEMENT

Soft, black, flat cables allow for more convenient cable management and easier installation.

DUAL CPU POWER CONNECTORS

Dual CPU power connectors allows for compatibility with high-end Intel and AMD Ryzen CPUs.
