AMD RYZEN 9 9900X TRAY
Description

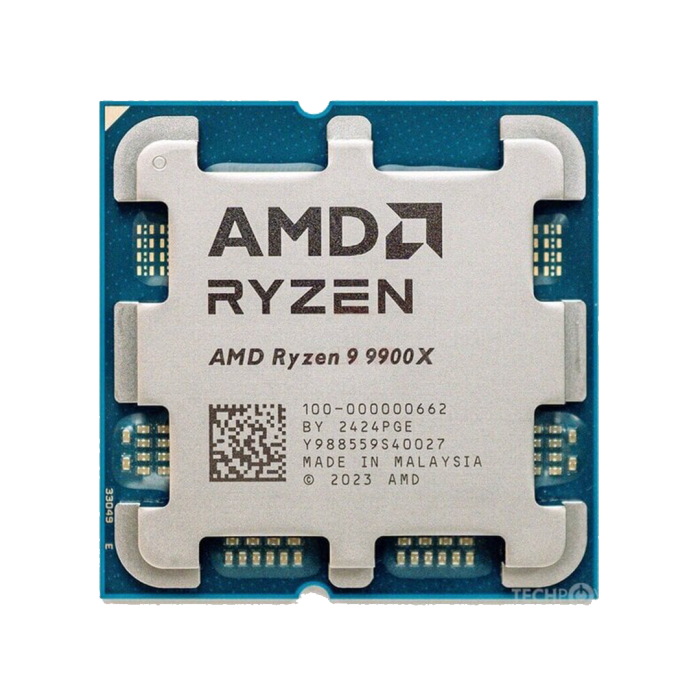

AMD Ryzen 9 9900X
5.6 GHz 12-Core AM5 - CPU SpecsView the technical specifications of the AMD Ryzen™ 9 9900X. Featuring 12 cores, 24 threads, up to 5.6 GHz boost clock, 64 MB L3 cache, and support for PCIe® 5.0 and DDR5 memory, this CPU is engineered for high-performance computing. Dive into the detailed specs to understand its capabilities.
| Specification | Details |
|---|---|
| Name | AMD Ryzen™ 9 9900X |
| Family | Ryzen |
| Series | Ryzen 9000 Series |
| Form Factor | Desktops, Boxed Processor |
| Market Segment | Enthusiast Desktop |
| AMD PRO Technologies | No |
| Consumer Use | Yes |
| Regional Availability | Global |
| Former Codename | Granite Ridge AM5 |
| Architecture | Zen 5 |
| # of CPU Cores | 12 |
| Multithreading (SMT) | Yes |
| # of Threads | 24 |
| Max. Boost Clock | Up to 5.6 GHz |
| Base Clock | 4.4 GHz |
| L1 Cache | 960 KB |
| L2 Cache | 12 MB |
| L3 Cache | 64 MB |
| Default TDP | 120W |
| Processor Technology for CPU Cores | TSMC 4nm FinFET |
| Processor Technology for I/O Die | TSMC 6nm FinFET |
| Package Die Count | 3 |
| Unlocked for Overclocking | Yes |
| AMD EXPO™ Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen™ Master Support | Yes |
| CPU Socket | AM5 |
| Supporting Chipsets | A620, X670E, X670, B650E, B650, X870E, X870 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution (PIB) | Not Included |
| Recommended Cooler | Liquid cooler recommended for optimal performance |
| Max. Operating Temperature (Tjmax) | 95°C |
| OS Support | Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
| Connectivity | Native USB 3.2 Gen 2 (10Gbps) Ports: 4, Native USB 2.0 (480Mbps) Ports: 1 |
| PCI Express® Version | PCIe® 5.0 |
| Native PCIe® Lanes (Total/Usable) | 28, 24 |
| Additional Usable PCIe Lanes from Motherboard | X870E 8x Gen4 X870 4x Gen4 X670E 12x Gen4 X670 12x Gen4 B650E 8x Gen4 B650 8x Gen4 |
| NVMe Support | Boot, RAID0, RAID1, RAID5, RAID10 |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Max. Memory | 192 GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed | 2x1R DDR5-5600 2x2R DDR5-5600 4x1R DDR5-3600 4x2R DDR5-3600 |
| ECC Support | Yes (Requires mobo support) |
| Graphics Capabilities | Graphics Model: AMD Radeon™ Graphics Graphics Core Count: 2 Graphics Frequency: 2200 MHz USB Type-C® DisplayPort™ Alternate Mode: Yes |
| Product IDs | Product ID Boxed: 100-100000662WOF Product ID Tray: 100-000000662 |
| Key Features | Supported Technologies: AMD EXPO™ Technology, AMD Ryzen™ Technologies |
