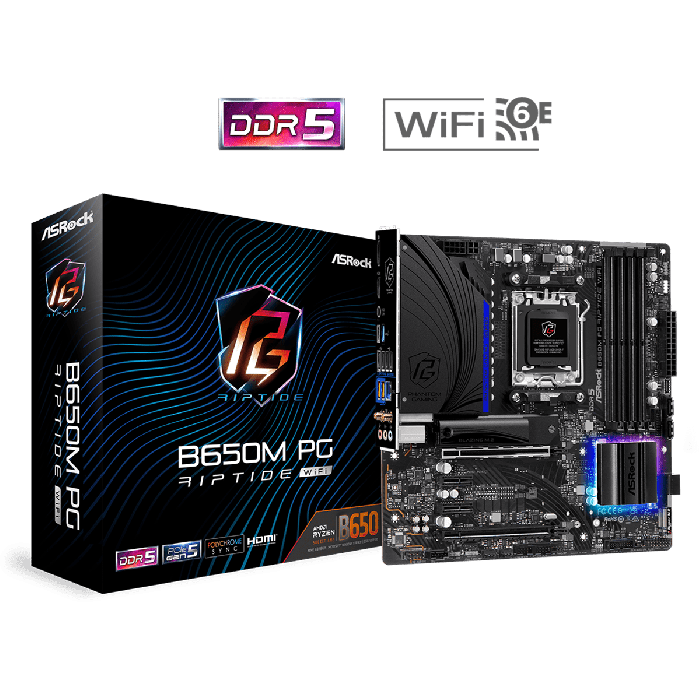

ASROCK B650M PG RIPTIDE WIFI DDR5 MOTHERBOARD

74.00 OMR

Out of stock
SKU: 35325
Description
    • Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 12+2+1 Power Phase, 50A Dr.MOS with Enlarged Heatsink Armor - Flexible Integrated I/O Shield Ultrafast Gaming - 2.5G LAN, 802.11ax Wi-Fi 6E Module - ASRock Lightning Gaming Ports EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
    • CPU
      - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
      *The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
    • Chipset
      - AMD B650
    • Memory
      - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)* - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
      *Please refer to Memory Support List for more information.
    • BIOS
      - 256Mb AMI UEFI Legal BIOS with GUI support
    • Graphics
      Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
    • Audio
      - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio
    • LAN
      - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Phantom Gaming LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control
  • Wireless LAN
    - 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 with extended 6GHz band* support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth + High speed class II - Supports MU-MIMO
    *The Wi-Fi 6E module is supported by Microsoft Windows® 11 only. There is no driver available for Windows® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. A 6GHz compatible router is required for 6E functionality.
  • Slots
    CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* - 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode* Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
    *Supports NVMe SSD as boot disks Supports AMD CrossFire™ 15μ Gold Contact in VGA PCIe Slot (PCIE1)
  • Storage
    CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors
    *Supports NVMe SSD as boot disks
  • RAID
    - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
    *Requires additional M.2 NVMe expansion cards to support RAID 10
  • USB
    - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front)
    *All USB ports support ESD Protection
  • Connector
    - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header
    *Supports in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***CPU_FAN1 supports the fan power up to 1A (12W). ****CPU_FAN2/WP supports the fan power up to 2A (24W). *****CHA_FAN1~3/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
  • Rear Panel I/O
    - 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) - 2 x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming Ports.) - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Phantom Gaming LAN Software - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Accessories
    - 1 x User Manual - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5/6 GHz Antennas - 2 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket
  • Form Factor
    - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - 2oz Copper PCB
  • OS
    - Microsoft Windows® 10 64-bit / 11 64-bit
  • Certifications
    - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
