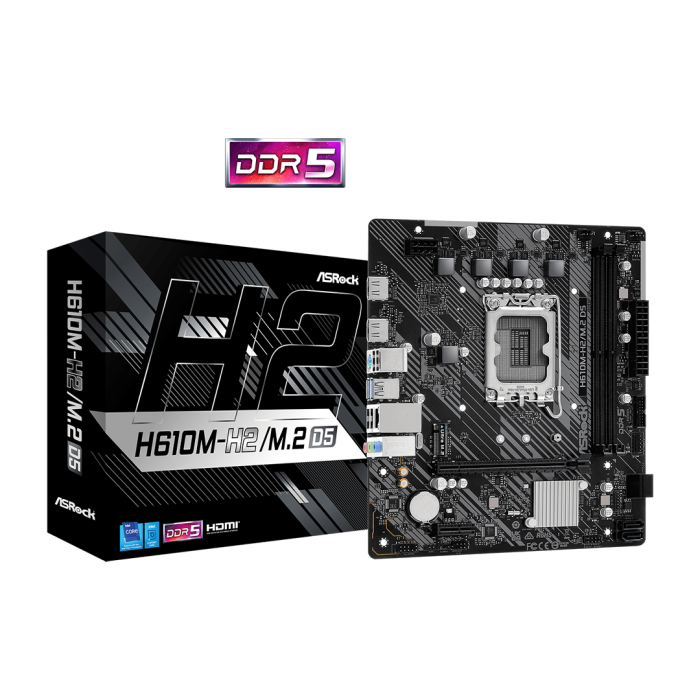

ASROCK H610M-H2/M.2 DDR5 MOTHERBOARD

36.00 OMR

In stock
SKU: 31167
Description
  • Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 3+1+1 Power Phase EZ Update - ASRock Auto Driver Installer
  • CPU
    - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology
  • Chipset
    - Intel® H610
  • Memory
    - Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - 13th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 5600* - 12th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 4800* - Max. capacity of system memory: 96GB - Supports Intel® Extreme Memory Profile (XMP) 3.0
    *Actual support may vary by CPU
  • BIOS
    - 128Mb AMI UEFI Legal BIOS with GUI support
  • Graphics
    - Intel® Xe Graphics Architecture (Gen 12) - 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz
    *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
  • Audio
    - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • LAN
    - Gigabit LAN 10/100/1000 Mb/s - Realtek 8111H
  • Slots
    CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2)*
    *Supports NVMe SSD as boot disks
  • Storage
    Chipset: - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors
    *Supports NVMe SSD as boot disks
  • USB
    - 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) - 6 x USB 2.0 (4 Rear, 2 Front)
    *All USB ports support ESD Protection
  • Connector
    - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)e.
    *CPU_FAN1 supports the fan power up to 1A (12W). **CHA_FAN1/WP supports the fan power up to 2A (24W). CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in us
  • Rear Panel I/O
    - 1 x PS/2 Mouse/Keyboard Port - 2 x HDMI Ports - 2 x USB 3.2 Gen1 Type-A Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software - ASRock Motherboard Utility (A-Tuning) UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Accessories
    - 1 x User Manual - 1 x I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket
  • Form Factor
    - Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
  • OS
    - Microsoft Windows® 10 64-bit / 11 64-bit
  • Certifications
    - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
