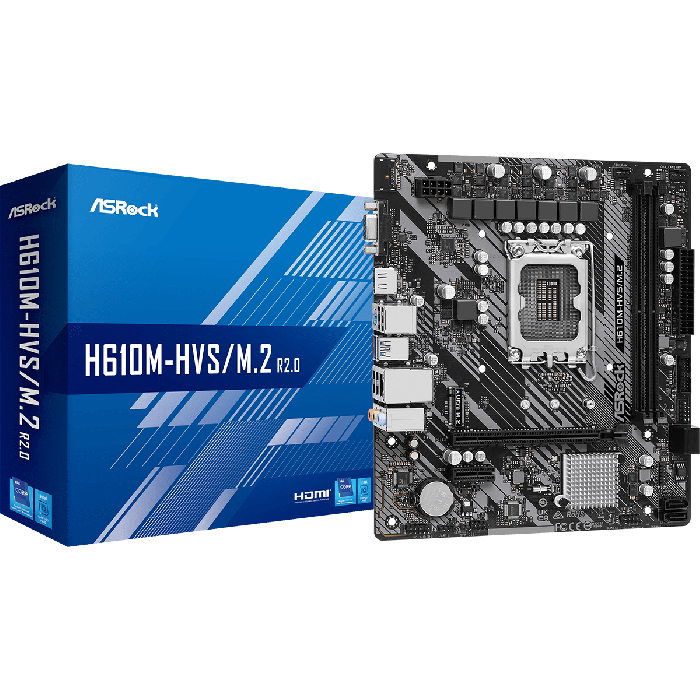

ASROCK H610M-HVS/M.2 R2.0 DDR4 MOTHERBOARD

32.00 OMR

Out of stock
SKU: 37142
Description
  • ASRock Super Alloy - Premium Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
  • CPU
    - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) - 6+1+1 Power Phase design - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology
  • Chipset
    - Intel® H610
  • Memory
    - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory up to 3200 - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB - Supports Intel® Extreme Memory Profile (XMP) 2.0
  • BIOS
    - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment
  • Graphics
    - Intel® Xe Graphics Architecture (Gen 12) - Dual graphics output: support HDMI and D-Sub ports by independent display controllers - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port
    * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
  • Audio
    - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection
  • LAN
    - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - 1 x Realtek RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
  • Slots
    CPU: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode* Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE1)
    *Supports NVMe SSD as boot disks
  • Storage
    Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors
    *Supports NVMe SSD as boot disks Supports ASRock U.2 Kit
  • Connector
    - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
    *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
  • Rear Panel I/O
    - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x HDMI Port - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 4 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software - ASRock Motherboard Utility (A-Tuning) UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash
    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Support CD
    - Drivers, Utilities, AntiVirus Software (Trial Version)
  • Accessories
    - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket
  • Hardware Monitor
    - Fan Tachometer: CPU, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans - CASE OPEN detection - Voltage monitoring: CPU Vcore, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, VCCSA, +1.05V PROC, +12V, +5V, +3.3V
  • Form Factor
    - Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm - Solid Capacitor design
  • OS
    - Microsoft Windows® 10 64-bit / 11 64-bit
  • Certifications
    - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
