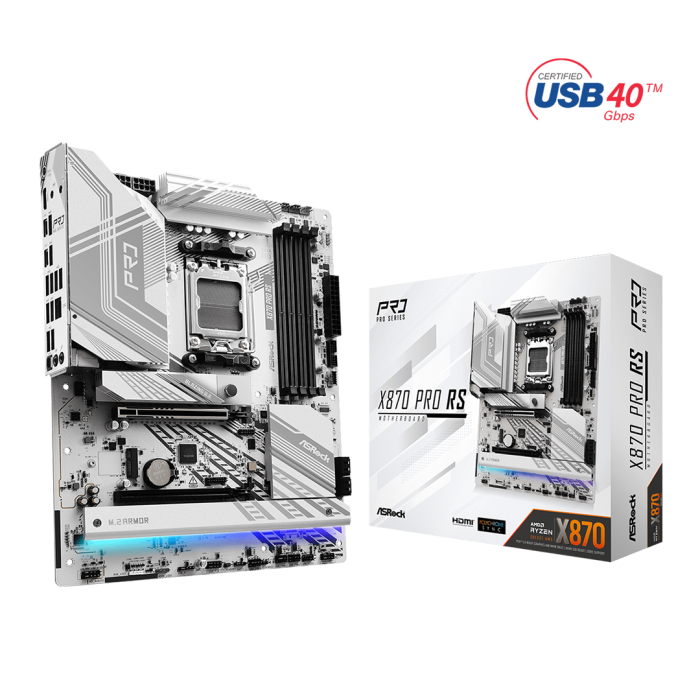

ASROCK X870 PRO RS DDR5 MOTHERBOARD

89.00 OMR

Out of stock
SKU: 38351
Description
  • Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 - USB4 Type-C Ports (40 Gb/s) Rock-Solid Durability - 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor - Flexible Integrated I/O Cover Ultrafast Connectivity - 2.5G LAN EZ Update - BIOS Flash Switch - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Display Status Monitor
  • CPU
    - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors *
    * The number of available expansion slots may vary depending on the processor (CPU). Please refer to PCIe/M.2 Bandwidth Table for details.
  • Chipset
    - AMD X870
  • Memory
    - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC) * - Max. memory capacity: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
  • BIOS
    - 256Mb AMI UEFI BIOS supports GUI
  • Graphics
    Integrated AMD RDNA™ graphics (Support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 2 x USB4, supports HDCP 2.3 and max. resolution up to 8K 30Hz *
    * Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display on a Type-C display, please use AM5 Ryzen™ 9000, 8000 and 7000 series processors with integrated graphics.
  • Audio
    - Support 7.1 channel HD audio with protection (Realtek ALC1220 audio codec) - Impedance response unit on the rear port - Separate left/right audio channel PCB - Nahimic sound
  • LAN
    - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Support Dragon 2.5G LAN Software - Automatic bandwidth control adjustment - User-friendly graphical interface - Graphical display of network usage status - Optimal settings for gaming, web browser and streaming modes - User priority control
  • Slots
    CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode * Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode * - 1 x M.2 Socket (Key E), supports 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire™ - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
    * PCIE1 will run at Gen5x16 speed with 9000 and 7000 series processors, Gen4x8 with 8000 series processors (Phoenix 1), Gen4x4 with 8000 series processors (Phoenix 2). If the M2_2 slot is occupied, PCIE2 will be disabled. Supports NVMe SSD as boot disk.
  • Preservation
    CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode * Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode * - 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes * - 2 x ports support SATA3 6.0 Gb/s connectors ASMedia ASM1061: - 2 x ports support SATA3 6.0 Gb/s connectors
    * Supports NVMe SSD as boot disk. M2_1 is the first slot to install M.2. M2_1 will run at Gen5x4 speed with 9000 and 7000 series processors, Gen4x4 with 8000 series processors (Phoenix 1 and Phoenix 2). If M2_2 slot is occupied, PCIE2 will be disabled. Using SATA3_1 or SATA3_2 slot will cause M2_3 slot to run at Gen3x2 speed.
  • RAID
    - Support RAID 0 and RAID 1 for SATA storage devices - Support RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices *
    * M.2 NVMe expansion card required for RAID 10 support.
  • USB
    CPU: - 2 x USB4 Type-C (Rear) - 2 x USB 3.2 Gen1 Type-A (Rear (USB32_1 & USB32_2)) Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Front) - 4 x USB 3.2 Gen1 Type-A (2 Rear (USB32_3 & USB32_4), 2 Front) - 9 x USB 2.0 (6 Rear, 3 Front)
    * All USB ports support ESD Protection.
  • link
    - 1 x Thermistor Cable Header - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header * - 3 x Addressable LEDs ** - 2 x CPU Fan Connectors (4-pin) (Smart Fan Control) *** - 4 x Chassis Fan Connectors (4-pin) (Smart Fan Control) *** - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Control) *** - 1 x 24-pin ATX Power Connector - 2 x 8-pin 12V Power Connectors (Hi-Density Power Headers) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Support 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
    * Support LED Strip up to 12V/3A, 36W ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2, CHA_FAN1~4 and AIO_PUMP support the fan power up to 3A (36W). CPU_FAN2, CHA_FAN1~4 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
  • Rear I/O ports
    - 2 x Antenna connectors - 1 x HDMI port - 1 x Optical SPDIF Out port - 2 x USB4 Type-C Ports (40 Gb/s) * - 4 x USB 3.2 Gen1 Type-A Ports - 6 x USB 2.0 ports - 1 x RJ-45 LAN port - 1 x BIOS flash switch - 1 x Line Out Jack (Gold audio jack) - 1 x Microphone Input Jack (Gold audio jack)
    * Support USB PD 3.0 up to 5V@3A (15W) charging
  • Software and UEFI
    Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC * UEFI - ASRock Easy New - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
    * These utilities can be downloaded from ASRock Live Update and APP Shop.
  • Accessories
    - 2 x SATA Cables - 1 x Screw for M.2 Socket
  • Factory model
    - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 8-layer PCB
  • OS
    - Microsoft ® Windows ® 10 64-bit / 11 64-bit
  • Certification
    - FCC, CE - ErP/EuP ready (Power supply must be ErP/EuP ready)
