RMe SERIES
FULLY MODULAR LOW-NOISE ATX PSUs

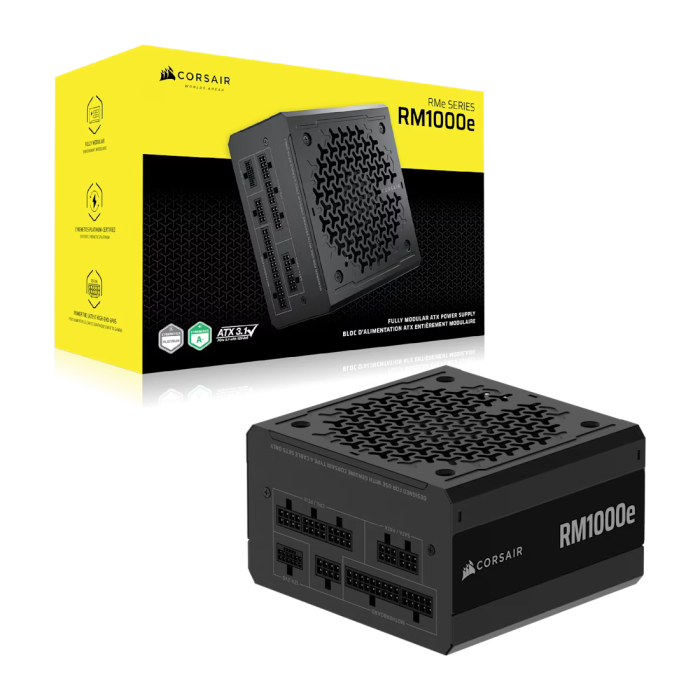

CORSAIR RM1000E 1000W PLATINUM FULLY MODULAR POWER SUPPLY [ 2025 VERSION ]
Description
RMe Series RM1000e Fully Modular Low-Noise ATX Power Supply (EU)
CORSAIR RMe Series Fully Modular Low-Noise Power Supplies include a dedicated 12V-2x6 GPU power cable, ATX 3.1 certification and PCIe 5.1 compliance, and Cybenetics™ Gold rated efficiency for a quiet, reliable build. The RMe PSUs' compact size also allow for easier cable management.
Includes
- Fully-Modular design for cleaner wiring
- Native 600W-capable 12V-2x6 cable for high-end GPUs
- Cybenetics Gold-certified efficiency
- Ultra-flexible embossed cables with low-profile combs
- Compact size for improved cable management
- Intel ATX 3.1 Certified, PCIe 5.1 compatible
| Cybenetics Efficiency | Platinum |
|---|---|
| Cybenetics Noise | A- |
| ATX Connector | 1 |
| ATX12V Version | 3.1 |
| Cable Type | Type 4 |
| Continuous Power W | 1000 Watts |
| EPS Connector | 2 |
| MTBF Hours | 100,000 hours |
| SATA Connector | 6 |
| PATA Connector | 2 |
|---|---|
| Modern Standby | Yes |
| Dimensions | 140x150x86 |
| Modular | Fully |
| PCIe Connector | 3 |
| Zero RPM Mode | Yes |
| Warranty | 7 Year |
| Weight | 3.23 |
BUILD WITH THE BEST
50 SERIES GPUs ARE HERE
KEEP IT NEAT AND TIDY
FULLY MODULAR CABLING
Keep cable clutter down by connecting only the cables your system needs. A native 600W 12V-2x6 GPU connector and multiple 8-pin PCIe connectors mean RMe power supplies more than meet the needs of modern and upcoming GPUs and CPUs.
ON THE CUTTING-EDGE
ATX 3.1 CERTIFIED
The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMe Series PSUs are formally certified for ATX 3.1 compliance.
PCIe 5.1 12V-2x6 GPU cables included for use with modern and next-gen graphics cards.
CYBENETICS GOLD CERTIFIED
LOW NOISE OPERATION IN A COMPACT SIZE
A compact 140mm-long casing ensures an easy fit in modern enthusiast PC cases.
A 120mm rifle bearing fan with a specially calculated fan curve keeps fan noise down, even when operating at full load.
BUILT TO LAST
TECHNOLOGY AND RELIABILITY
For consistent, reliable power and superb electrical performance, each RMe Series power supply features a robust resonant LLC topology with DC-DC conversion and 105° rated industrial-grade capacitors.
With precise timings, RMe supports Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.
SEVEN-YEAR WARRANTY
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.RM1000e POWER TABLE
MODEL
RPS0217
PART NO.
75-006462
AC INPUT RATING
AC INPUT
100–240V
INPUT CURRENT
10A - 5A
FREQUENCY
47~63Hz
MAX LOAD
MAX OUTPUT
+3.3V
20A
150W
+5V
20A
+12V
62.5A
1000W
+5VSB
3A
15W
TOTAL POWER
1000W
RM1000e CABLE LISTING
QTY
CABLE
CONNECTORS PER CABLE
TOTAL CONNECTORS
CONNECTOR SPACING
TOTAL LENGTH
CABLE TYPE
1
Modular ATX 24-pin
1
1
-
610mm
(± 10mm)
Embossed
2
EPS / ATX 12V 8-pin (4+4)
1
2
-
750mm
(± 10mm)
Embossed
1
12V-2x6 (12+4) Pin
1
1
-
650mm
(± 10mm)
Embossed
1
12V-2x6 to Dual 8-Pin (6+2)
2
2
-
650mm
(± 10mm)
Embossed
2
PCIe 8-Pin (6+2)
1
2
-
650mm
(± 10mm)
Embossed
1
SATA (4 Straight SATA)
4
4
450mm, 100mm, 100mm, 100mm
750mm
(± 10mm)
Embossed
1
SATA / PATA (2 Straight SATA) (2 Straight PATA)
4
4
450mm, 100mm, 100mm, 100mm
750mm
(± 10mm)
Embossed
