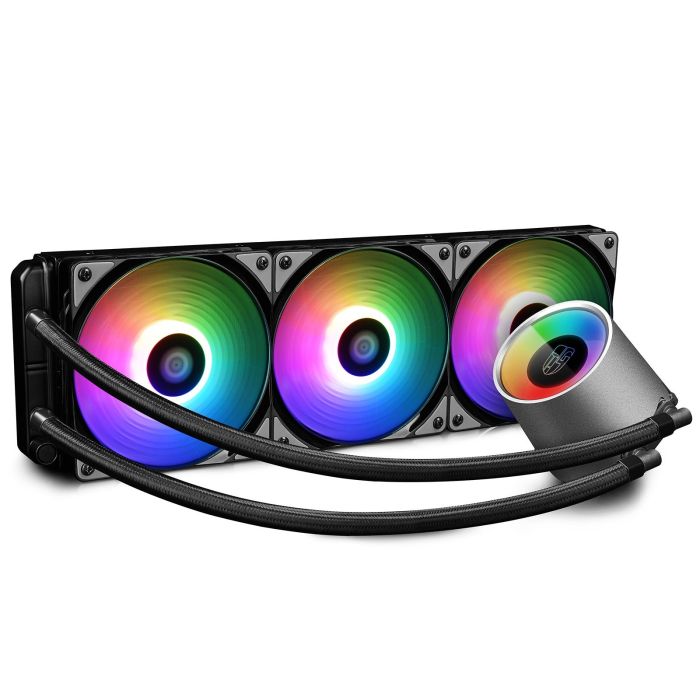

DEEPCOOL CASTEL 360 RGB V2
Description
Application For
Intel
LGA20XX/LGA1200/1151/1150/1155/LGA1366
AMD
TR4/AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
Technical Spec
| Radiator Dimensions | 395×120×27 mm |
| Radiator Material | Aluminum |
| Net Weight | 1715 g |
| Tube length | 465 mm |
| Pump Dimensions | 91×79×71 mm |
| Pump Speed | 2550 RPM±10% |
| Pump Noise | 17.8 dB(A) |
| Pump Connector | 3-pin |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.21 A |
| Pump Power Consumption | 2.52 W |
| Fan Dimensions | 120×120×25 mm |
| Fan Speed | 500~1800 RPM±10% |
| Fan Airflow | 69.34 CFM |
| Fan Air Pressure | 2.42 mmAq |
| Fan Noise | ≤30 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.17 A |
| Fan Power Consumption | 2.04 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 2.7 W（PUMP）/ 7.2 W（FAN×3） |
| EAN | 6933412726555 |
| P/N | DP-GS-H12L-CSL360RGB |
