Product Specification
Product Type ATX12V V 2.4
Product size 150×140×86mm
80 PLUS Gold
Capacitor Full Japan Electrolytic Capacitors
Conversion efficiency 90%Under Typical Load(50%Loading)
Protect SCP/OPP/OTP/OVP/OCP/UVP
Working temperature 0-40°C
ErP certification ErP (2014)
Architecture Solution Active PFC+Full Bridge SRC LLC+DC to DC
Certification CB/CCC
Mean time between failures 100, 000 Hours
Hold time 16mS(80%Load)
Drive signal 100-500ms
Fan parameters
Fan size 120mm
Fan Bearing FDB (Fluid Dynamic Bearing)
Power cord”Length
Main Power Connector(20+4)Pin X1 *1 600mm
CPU8Pin x 1 *1 700mm
CPU(4+4)Pin x 1 *1 800mm
PCI-E(6+2)Pin x 1 *3750mm
SATAx 4 *2 450mm+150mm+150mm+150mm
4Pin Peripheral x 4 *1 450mm+150mm+150mm+150mm
| Brand | Deepcool |
|---|---|

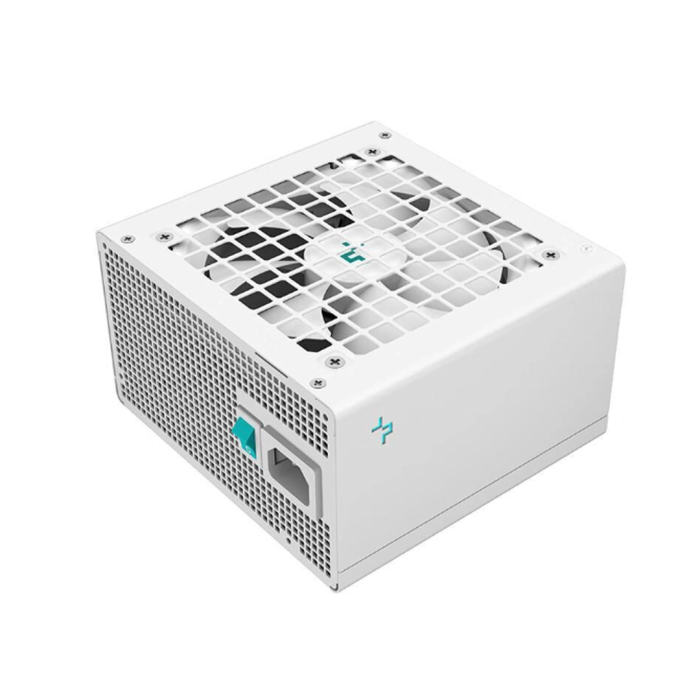

| Model | DQ850M V3L White |
| Color | White |
|---|---|
| Type | ATX |
| Maximum Power | 850 W |
| Fans | 1 x 120 mm |
| PFC | Active |
| Main Connector | 20+4Pin |
| PCI-Express Connector | 3 x 6+2-Pin |
| SATA Power Connector | 4 |
| Max PSU Length | 150 mm |
| Modular | Full Modular |
| Power Good Signal | 100-500ms |
| Hold-up Time | =16mS(80%Load) |
| Efficiency | > 90% |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Over Voltage Protection | Yes |
| Overload Protection | Yes |
| Protection | SCP/OPP/OTP/OVP/OCP/UVP |
| Input Voltage | 100 – 240 V |
| Input Frequency Range | 50/60 Hz |
| MTBF | >100,000 Hours |
| Dimensions | 150×140×86 mm |
|---|
