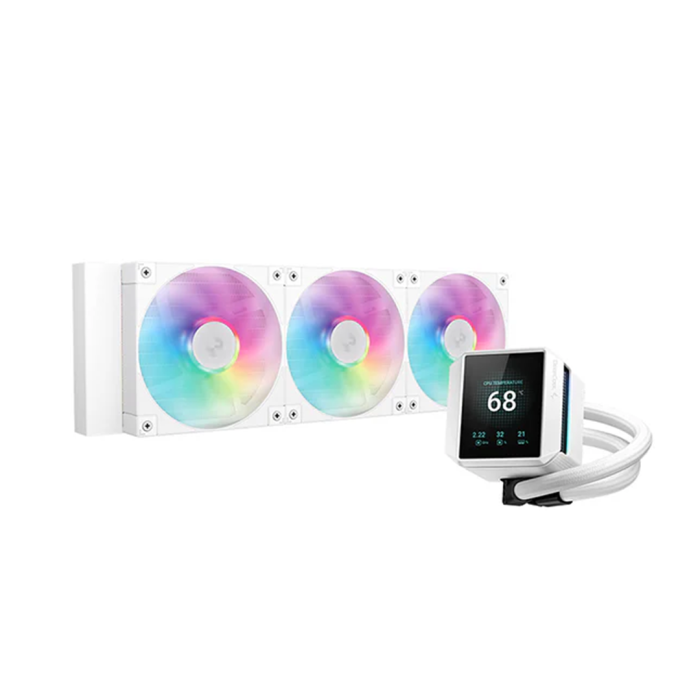

DEEPCOOL MYSTIQUE 360 WHITE A-RGB LCD SCREEN
Description
MYSTIQUE 360 WH ARGB
Visualizing Your Illuminated Imagination
MAGNIFICENTLY SHARP 2.8" LCD
Customize the large 2.8" TFT screen with your personalized content. The screen has a very sharp 640x480 pixel resolution and displays 16.7M colors brilliantly. The orientation of the screen will automatically adjust as the MYSTIQUE 360 WH ARGB utilizes built-in gyroscopic sensors.
Screen rotation
DeepCool-MYSTIQUE Setup
*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie
MONITORING mode is where you can choose specific monitoring options. You can choose between CPU Frequency, Time, Pump Speed, CPU Fan Speed, CPU Fan Speed + Pump Speed, and Temperature. Depending on the main display section, there are a few options for the sub-monitoring area, where you can choose between Voltage, System Monitoring, and Core Data.
MEDIA mode is where custom pictures and animated gifs can be uploaded. You can also set the ARGB accents to sync with the edges of the display in this mode as well.
In RECORDING mode, the CPU Frequency and Temperature will be displayed in two separate line charts and can be recorded for a maximum of 7 minutes.
REDESIGNED AND IMPROVED COLDPLATE
The MYSTIQUE 360 WH ARGB gets a redesigned coldplate that has been optimized for better heat transfer and 0.1mm intensive flow channels. The layout has been placed over CPU hotspots, and a precise liquid splitter makes sure that everything is flowing efficiently.
The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the MYSTIQUE 360 WH ARGB to the latest mainstream CPUs is included in the box, so you are ready to go.
*High thermal resistance paste is pre-applied
Application For
Intel
LGA1851/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
| Net Weight | 1847 g |
| Radiator Dimensions | 402×120×27 mm(L×W×H) |
| Radiator Material | Aluminum |
| Tube length | 410 mm |
| Pump Dimensions | 93×77×66 mm(L×W×H) |
| Pump Speed | 3400 RPM±10% |
| Pump Connector | 3-pin |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.35 A |
| Pump Power Consumption | 4.2 W |
| Fan Dimensions | 120×120×25 mm(L×W×H) |
| Fan Speed | 600~2400 RPM±10% |
| Fan Airflow | 72.04 CFM |
| Fan Air Pressure | 3.48 mmAq |
| Fan Noise | ≤38.71 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.22 A |
| Fan Power Consumption | 2.64 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 2.45 W（PUMP）/ 3.15 W（FAN×3） |
| Display Specifications | 2.83 inch 480×640 TFT LCD |
| EAN | 6933412729075 |
| P/N | R-LX360-WHDSNMCP-G-1 |
