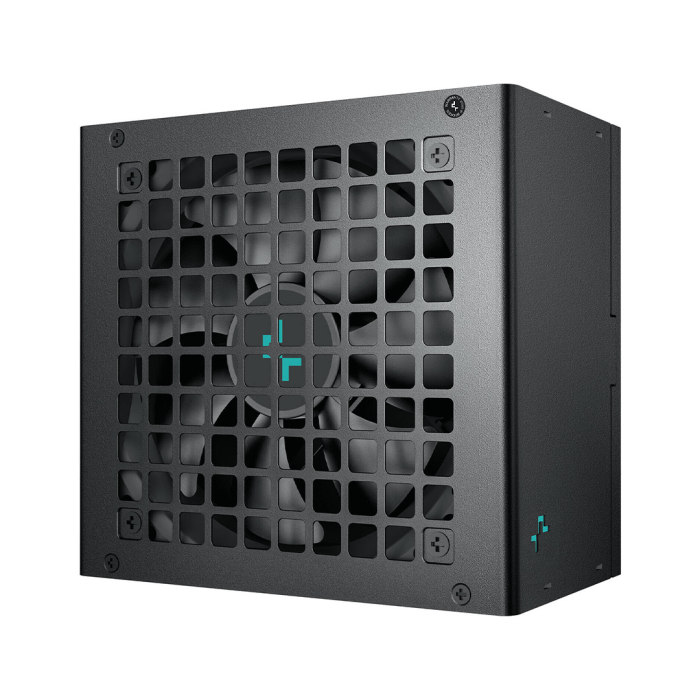

DEEPCOOL PL650D NON MODULAR BRONZE ATX 3.0 PCIE 5.0 POWER SUPPLY
Description
PL650D
The PL650D updates DeepCool non-modular PSUs with a 12VHPWR cable and brings them into compliance with INTEL's ATX3.0 standard. These units are 80 PLUS Bronze-verified, come with a 120mm hydro-bearing fan, and will provide stable power for years to come.
Specifications
Specifications
| Type | ATX12V V3.0 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| Efficiency Certification | 80Plus Bronze |
| Fan Size | 120mm |
| Fan Bearing | HYB (Hydro Bearing) |
| Topology | Active PFC + DC to DC |
| Capacitors | Chinese Electrolytic Capacitors |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms |
| Efficiency | ≥85% Under Typical Load (50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 - 40℃ |
| Regulatory | CE/FCC/CCC/RCM/EAC/BIS/CAN ICES-003(B)/NMB-003(B)/TUV-RH |
| ErP Regulation | ErP 2014 |
| Environmental Protection | WEEE/中国 RoHS/Triman/P65 |
| MTBF | 100,000 Hours |
