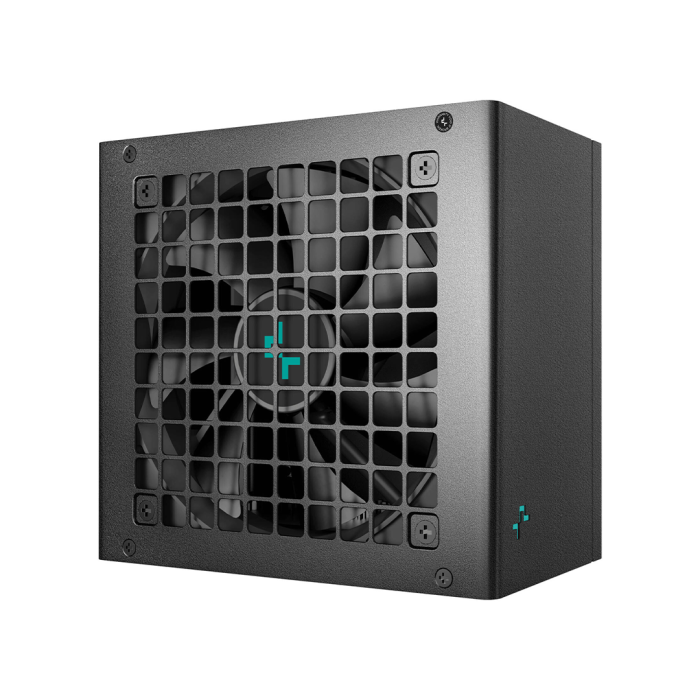

DEEPCOOL PN750M 750W GOLD PCIE 5.1 FULL MODULAR
Description
PN750M
The DeepCool PN750M is a new power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standard. With a dedicated 12V-2x6, 5 EPS/PCIe ports, the PN750M provides stable power for a wide range of modern high-power components.
Specifications
Specifications
| Type | ATX12V V3.1 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| Efficiency certification | 80Plus Gold |
| Fan Size | 120mm |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors | Japanese Bulk Capacitor |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms (80% Load) |
| Efficiency | ≥90% Under Typical Load (50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 - 40℃ |
| Regulatory | CE/FCC/CCC/cTUVus/RCM/EAC/BIS/TUV-R |
| ErP Regulation | ErP 2014 |
| Environment Protection | WEEE/RoHS/Triman/P65 |
| MTBF | 100,000 Hours |
2-3 Days Delivery in Oman We offer express delivery to Muscat, Salalah, Seeb, Sohar, and other cities in Oman for DeepCool PN750M Fully Modular Power Supply, 750W Power, 80 Plus Gold Certified, Active PFC + Full Bridge SRC LLC + DC to DC, Japanese Bulk Capacitor, FDB Fans, 120mm Fan Size, Black | R-PN750M-FC0B-UK. Best Price Guarantee We offer the best price for DeepCool PN750M Fully Modular Power Supply, 750W Power, 80 Plus Gold Certified, Active PFC + Full Bridge SRC LLC + DC to DC, Japanese Bulk Capacitor, FDB Fans, 120mm Fan Size, Black | R-PN750M-FC0B-UK in Oman. Buy now with the best price!
Specifications for DeepCool PN750M Fully Modular Power Supply, 750W Power, 80 Plus Gold Certified, Active PFC + Full Bridge SRC LLC + DC to DC, Japanese Bulk Capacitor, FDB Fans, 120mm Fan Size, Black | R-PN750M-FC0B-UK
General
Brand
Model
- PN750M
Microless SKU
- 165380
Date first available
- 27 February, 2024
Shipping Weight
- 1.85 Kg
Shipping Dimensions
- 11.50 cm x 26.50 cm x 18.00 cm
Form Factor
- ATX
Power
- 750 W
Efficiency
- 80 Plus Gold
Modular
- Full Modular
PFC
- Active
Fanless
- No
Color
- Black
Length
- 140 mm
Connectors
Main Connectors
- 1 x 24 pin (20+4) ATX
EPS/CPU Connectors
- 2 x 8 pin (4+4) EPS (CPU)
SATA Power Connectors
- 8
Molex Connectors
- 2
PCIe 6-Pin Connectors
- 0
PCIe 6+2-Pin Connectors
- 3
PCIe 8-Pin Connectors
- 0
PCIe 12-Pin Connectors
- 0
PCIe 12+4-Pin 12VHPWR Connectors
- 1
