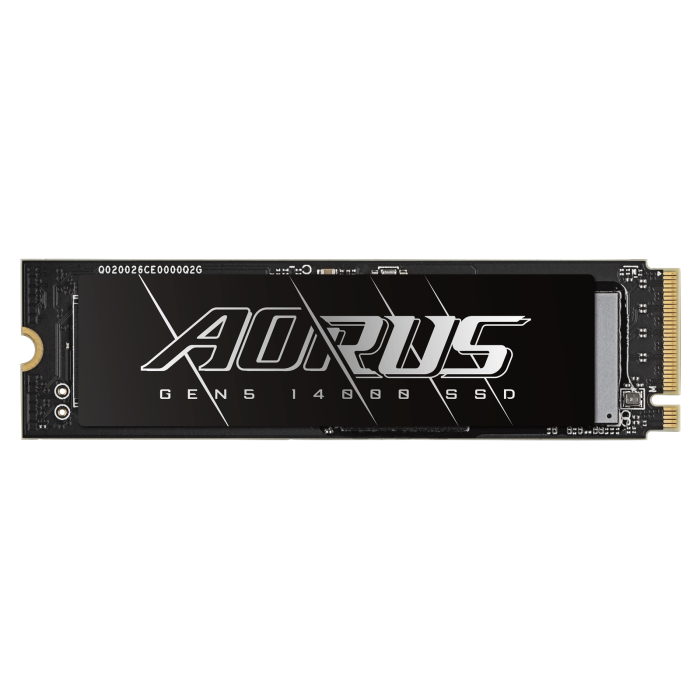

GIGABYTE AORUS GEN5 14000 1TB M.2 NVME SSD

AG514K1TB

Interface

PCI-Express 5.0x4, NVMe 2.0
Form Factor

M.2 2280
Total Capacity

1000GB
NAND

3D TLC NAND Flash
External DDR Cache

LPDDR4 2GB
Sequential Read speed

Up to 13,600 MB/s
Sequential Write speed

Up to 10,200MB/s
Dimension

80 x 22 x 3.5 mm
Mean time between failure (MTBF)

1.6 million hours
Max. Operating Power

Read : 11.5W; Write : 11.5W
Power Consumption (Idle, PS3)

< 144mW
Power Consumption(PS4, L1.2)

< 85mW
Temperature (Operating)

0°C to 70°C
Temperature (Storage)

-40°C to 85°C

3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)
Note

• Test system configuration: configuration may vary by models, we will choose the latest platform for verification. • Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0. • Speeds based on internal testing. Actual performance may vary. • 1GB = 1 billion bytes. Actual useable capacity may vary.

GIGABYTE AORUS GEN5 14000 1TB M.2 NVME SSD – AG514K1TB
