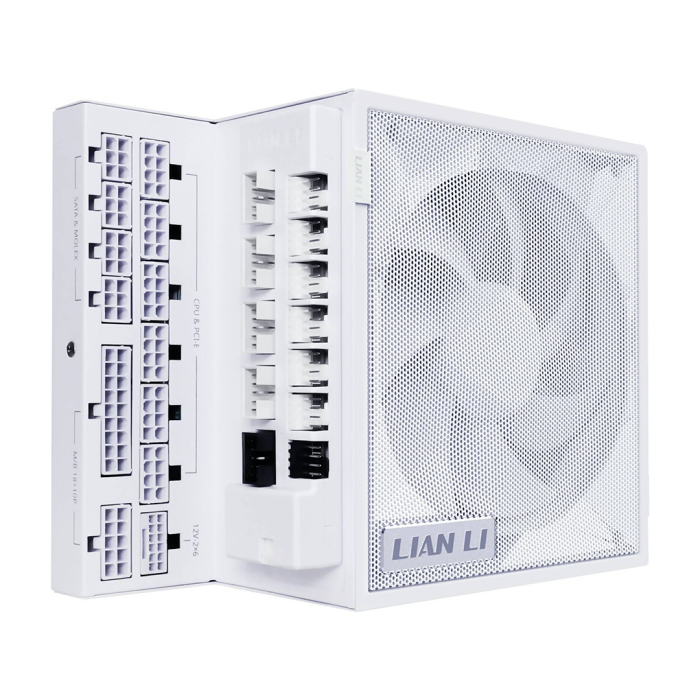

LIAN LI EDGE 1200G 1200W GOLD L SHAPE FULLY MODULAR [ WHITE ]
Description
Specifications
| Model | EG1200G |
| Dimensions | 182mm (D) x 86mm (W) x 150mm (H) |
| Design | Fully modular |
| Color | Black / White |
| Material | Steel |
| Form Factor | ATX 3.1 |
| Certification | 80 PLUS GOLD / Cybenetics GOLD / PPLP GOLD |
| Max DC Output | 1200W |
| +3.3V & +5V Combined | 120W |
| +12V Combined | 1200W |
| Input Voltage | 100-240Vac |
| Frequency / Current | 15-7.5A 50-60Hz |
| PFC | Active PFC (PF > 0.90) |
| Efficiency (Max) | 91.64% |
| Protection | OCP / OVP / OTP / OPP / SCP / UVP |
| Fan Type | 120mm FDB |
| Fan Speed | 2400RPM |
| Noise Level | 39.3dBA |
| Connectors | 1 x 24/20-Pin motherboard connector (620mm) x1pcs 1 x 8/4+4 Pin CPU/ATX 12V connector (750mm) x1pcs 1 x 4+4 Pin CPU/ATX 12V connector (750mm) x1pcs 1 x 6+2 Pin PCle connector (650mm + 100mm) x1pcs 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs 4 x Y Type SATA connector (375mm-150mm-150mm-150mm) x1pcs 4 x SATA connector (400mm-150mm-150mm-150mm) x 1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs 1 x 12V – 2X6 600W connector (650mm) x1pcs 1 x 12V – 2X6 -2*8 600W connector (650mm) x1pcs USB*9pin – USB*9pin connector (470mm) × 1pcs USB*9pin -Type A connector (550mm) × 1pcs |
