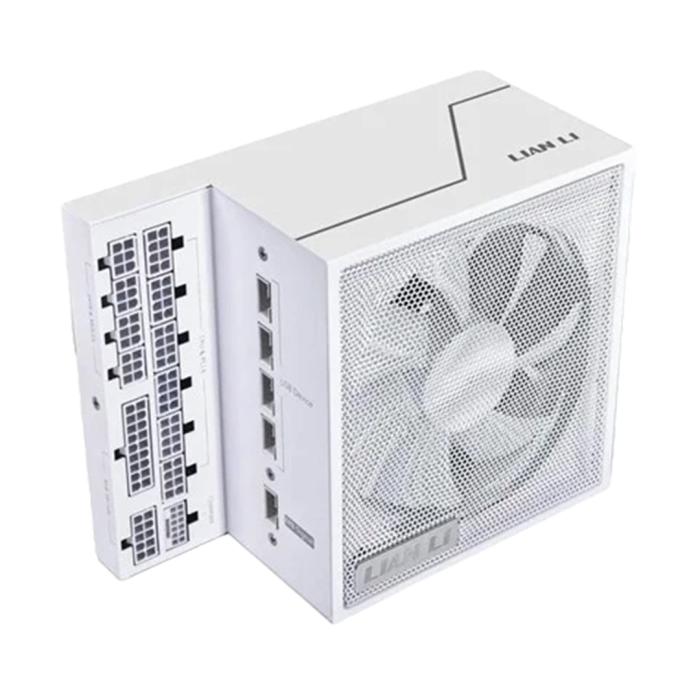

LIAN LI EDGE 850W PLATINUM L SHAPE FULLY MODULAR [ WHITE ]
Description
Edge 850
The EDGE PSU series introduces a revolutionary power supply featuring a unique L-shape design, an integrated USB hub, and enhanced efficiency. Experience the blend of aesthetics and convenience in your PC build.
Specifications
Specifications
| Model | EG850 |
| Dimensions | (D) 182 mm × (W) 86 mm × (H) 150 mm |
| Power Supply Design | Fully modular |
| Colorwhite | |
| Material | Steel, Plastic |
| Form Factor | ATX 3.1 |
| Certification | 80 PLUS PLATINUM, Cybenetics PLATINUM, PPLP PLATINUM |
| Max. DC Output | 850W |
| Combined +3.3V & +5V | 120W |
| Combined +12V | 849.6W |
| Input Voltage | 100-240Vac |
| Input Frequency Range | 10-5A 50-60Hz |
| PFC | Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz |
| Efficiency | 92.41% MAX |
| Protective Circuit | OCP, OVP, OTP, OPP, SCP, UVP |
| Connectors | 1 × 24/20-Pin motherboard connector (500mm) × 1 pcs |
| 1 × 8/4+4 Pin CPU/ATX 12V connector (550mm) × 2 pcs | |
| 1 × 8/6+2 Pin PCle connector (550mm) × 3 pcs | |
| 1 × 12VHPWR connector (550mm) × 1 pcs | |
| 4 × 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) × 1 pcs | |
| 4 × SATA connector (400mm-150mm-150mm-150mm) × 1 pcs | |
| 4 × SATA connector (300mm-15mm-15mm-15mm) × 1 pcs | |
| 4 × Y Type SATA connector (400mm-125mm × 2) × 1 pcs | |
| USB9pin – USB9pin connector (350mm) × 1 pcs | |
| USB*9pin -Type A connector (550mm) × 1 pcs | |
| Fan Type | 120mm FDB Fan |
| Fan RPM | 2000 RPM |
| Fan Noise Level | 25.96 dBA |
