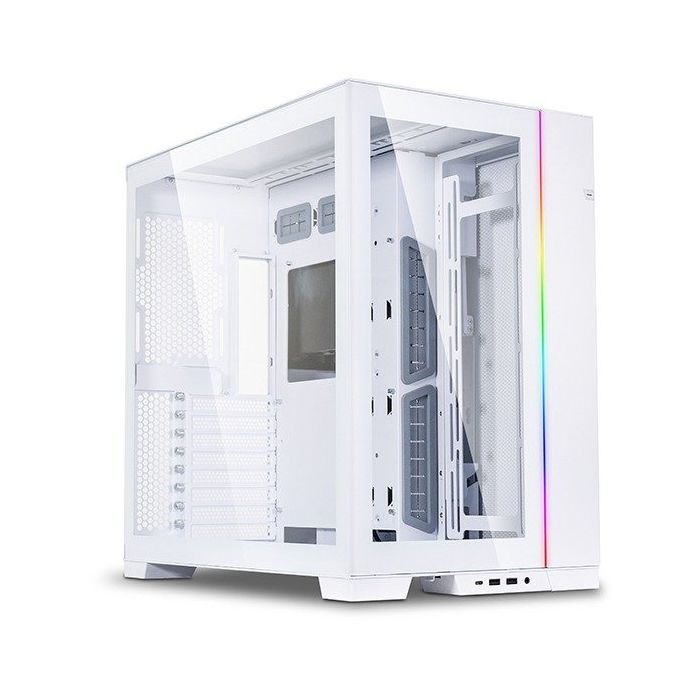

LIAN LI O11D Dynamic Evo White
Description
| PRODUCT NAME | O11D EVO | ||
|---|---|---|---|
| MODEL | O11DEX | O11DEW | O11DEG |
| COLOR | Black | White | Harbor Grey |
| DIMENSION | (D)465mm × (W)285mm × (H)459mm | ||
| MATERIAL | 4mm Aluminum 4mm Tempered Glass 1mm Steel Structure | ||
| MOTHERBOARD SUPPORT | E-ATX (width: under 280mm)/ATX /M-ATX/ITX | ||
| PSU SUPPORT | 220mm | ||
| FAN SUPPORT | Top: 120mm × 3 or 140mm × 2 Side: 120mm × 3 or 140mm × 2 Bottom: 120mm × 3 or 140mm × 2 Rear: 120mm × 1 On Drive Cage: 60mm × 1 | ||
| RADIATOR SUPPORT | Top: 360mm × 1 or 280mm × 1 *Total max thickness: 87.5mm Side: 360mm × 1 or 280mm × 1 *Inner scenario total max thickness: 83mm(120mm fan on top and bottom) 63mm(140mm fan on top and bottom) *Outer scenario total max. thickness： 120mm(120mm fan on top and bottom) 100mm(140mm fan on top and bottom) Bottom: 360mm × 1 *Total max thickness: 87.5mm | ||
| DRIVE SUPPORT | Bottom：2.5” SSD × 4 or 3.5” HDD × 2 Side：2.5” SSD × 4 or 3.5” HDD × 2 Drive Cage：2.5” SSD × 3 or 3.5” HDD × 2 + 2.5” SSD × 1 Cable Management Bar：2.5” SSD × 2 *Only 9 sets of 2.5” SSD mounting pads are provided | ||
| GPU LENGTH CLEARANCE | 426 mm | ||
| CPU HEIGHT CLEARANCE | 167 mm | ||
| EXPANSION SLOTS | 8 | ||
| I/O PORTS | 2 × USB 3.0 1 × USB 3.1 TYPE-C, 1 × HD AUDIO/ MIC LED Color and Mode button Reset Button Power Button | ||
| DUST FILTER | Bottom × 1 | ||
| WARRANTY | 1 year | ||
