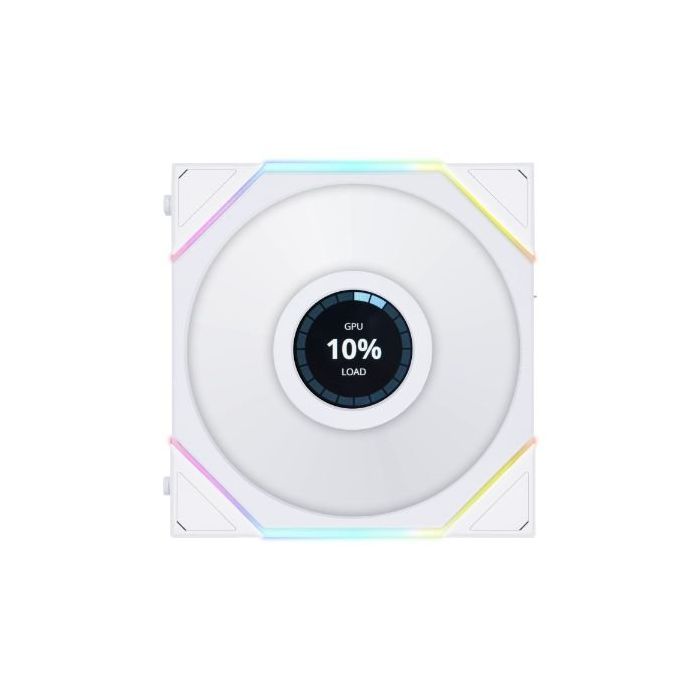

Lian Li UNI FAN TL LCD 120 – SINGLE FAN WHITE

JavaScript seems to be disabled in your browser. For the best experience on our site, be sure to turn on Javascript in your browser.

DELIVERY

BUY IDEEZ

20.00 OMR

In stock

SKU: 23518

Description

SPECIFICATIONS

PRODUCT NAME	UNI FAN TL LCD 120				UNI FAN TL LCD 140
MODEL	12TLLCD3B	12TLLCD3W	12TLLCD1B	12TLLCD1W	14TLLCD1B	14TLLCD1W
COLOR	Black	White	Black	White	Black	White
NUMBER OF FANS	3	3	1	1	1	1
CONTROLLER	Yes		No		NO
CONNECTOR TYPE	UNI FAN Controller Cable x 1 (P-7P)		UNI FAN Controller Cable x 1 (P-7P)		UNI FAN Controller Cable x 1 (P-7P)
FAN DIMENSION	124 x 120 x 28 mm				144 X 140 X 28 (mm)
FAN SPEED	0, 350~1900 RPM				0, 400~1600 RPM
MAX. AIR PRESSURE	2.9 mmH2O (Maximum)				3.5 mmH2O (Maximum)
MAX. AIRFLOW	62 CFM (Maximum)				68.1 CFM (Maximum)
ACOUSTIC NOISE	27 dB(A) Max				28.5 dB(A) Max
INPUT POWER	7.08W				6.72W
MATERIAL	PA66 / PBT
RATED VOLTAGE	DC 12V (FAN) & 5V (LED)
BEARING TYPE	Fluid Dynamic Bearing (FDB)
OPERATE VOLTAGE	DC12V & 5V
WARRANTY	3 years

PRODUCT NAME	UNI FAN TL LCD 120 Reverse Blade			UNI FAN TL LCD 140 Reverse Blade
MODEL	12RTLLCD3B	12RTLLCD3W	12RTLLCD1B	12RTLLCD1W	14RTLLCD1B	14RTLLCD1W
COLOR	Black	White	Black	White	Black	White
NUMBER OF FANS	3	3	1	1	1	1
CONTROLLER	Yes		No		NO
CONNECTOR TYPE	UNI FAN Controller Cable x 1 (P-7P)		UNI FAN Controller Cable x 1 (P-7P)		UNI FAN Controller Cable x 1 (P-7P)
FAN DIMENSION	124 x 120 x 28 mm				144 X 140 X 28 (mm)
FAN SPEED	0, 350~1900 RPM				0, 350~1600 RPM
MAX. AIR PRESSURE	2.83 mmH2O (Maximum)				3.1 mmH2O (Maximum)
MAX. AIRFLOW	54.3 CFM (Maximum)				64 CFM (Maximum)
ACOUSTIC NOISE	31 dB(A) Max				29.4 dB(A) Max
INPUT POWER	7.08W				6.72W
MATERIAL	PA66 / PBT
RATED VOLTAGE	DC 12V (FAN) & 5V (LED)
BEARING TYPE	Fluid Dynamic Bearing (FDB)
OPERATE VOLTAGE	DC12V & 5V
WARRANTY	3 years
