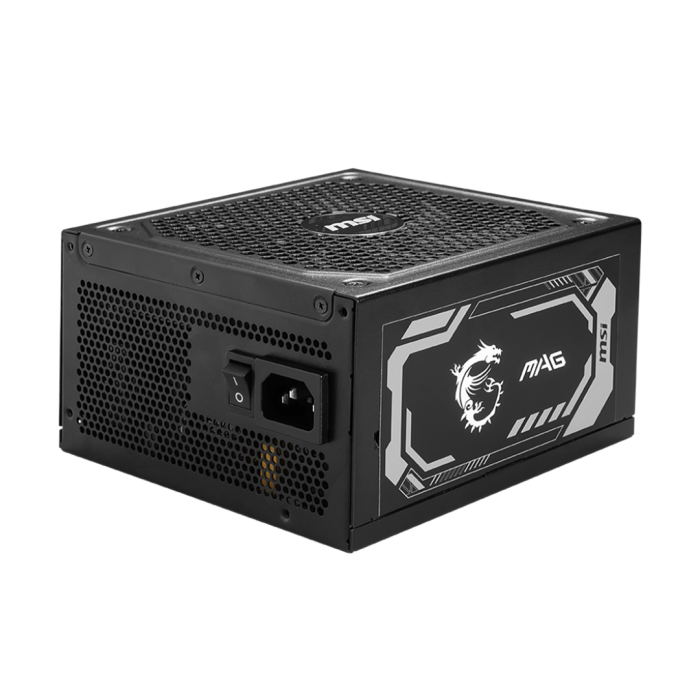

MSI MAG A1000G 1000W GOLD FULLY MODULAR PCIE 5.0 POWER SUPPLY
Description
SPECIFICATIONS
WEIGHT (CARD) 169g
Modular Yes (fully modular)
Dimensions 120mm x 120mm x 25.6mm
Fan Bearing Fluid Dynamic Bearing
Bearing Type Hydro-Dynamic Bearing
Input Voltage Range 100-240V~
Power Watt 1000W
Power Excursion 2000W (*up to 200% of the PSU's rated power for
100μs)
Rated Speed 500 - 1800 ±15% RPM
Air Flow 19.79 - 71.27 CFM
Static Air Pressure 0.16 - 2.09 mm-H20
ATX (24 pin) 1
Input Frequency 50-60Hz
Connector 4-Pin PWM/DC
Efficiency 80 PLUS Gold (up to 90%)
EPS (4+4 PIN) 2
PCI-E 5.1 (16 pin) 1 (600W)
Life Expectancy MTTF 150,000 Hours (25℃)
Fan Size 135 mm
PCI-E (6+2 pin) 4
Dimension 150 x 150 x 86 mm
PFC Type Active PFC
SATA (15 pin) 12
MOLEX (4 pin) 4
Protection OCP / OVP / OPP / OTP / SCP / UVP
FDD (4 pin) 1
