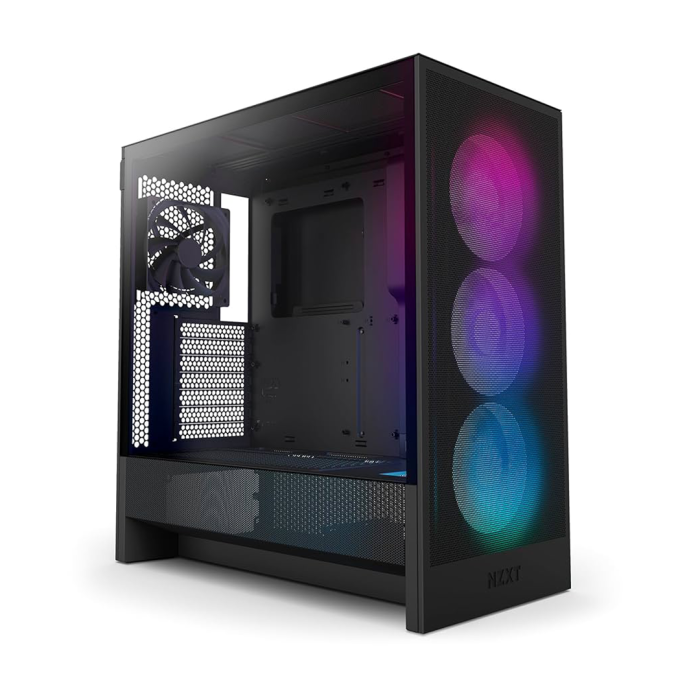

NZXT H5 FLOW RGB BLACK (2024) MODEL
Description
H5 Flow RGB 2024
The H5 Flow RGB boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.
Specifications
Specifications
| Motherboard Support | E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX |
| Enclosure Type | Mid-Tower |
| Case Material | SGCC Steel, Ultra-Clear Tempered Glass (White) |
| Dimensions | |
| Height (with feet) | 465 mm / 18.31 in |
| Width | 225 mm / 8.86 in |
| Depth | 430 mm / 16.93 in |
| Weight | 7.63 kg / 16.82 lb |
| Compatibility & Clearance | |
| CPU Cooler Height | Up to 170 mm |
| GPU Length | Up to 410 mm |
| PSU Length | Up to 200 mm |
| Cable Management | Up to 28.7 mm |
| Top Radiator | Up to 240 mm (280 mm with low-profile memory) |
| Top Mounted Radiator & Fan Combined Thickness | Up to 55 mm |
| Front Ports | |
| USB 3.2 Type-A | 1 |
| USB 3.2 Type-C | 1 |
| Headset Audio Jack | 1 |
| Expansion Slots | |
| Standard | 7 |
| Vertical | 0 |
| Drive Bays | |
| 2.5" | 2 |
| 3.5" | 1 |
| Fan Support | |
| Front | 3 x 120 mm / 2 x 140 mm (1 x F360 RGB Core Case Version included) |
| Top | 2 x 120 mm / 2 x 140 mm |
| Bottom | 2 x 120 mm |
| Rear | 1 x 120 mm (2 x F120Q Case Version included) |
| Radiator Support | |
| Front | Up to 360 mm |
| Top | Up to 240 mm (280 mm with low-profile memory only) |
| Fan Specs (F360 RGB Core) | |
| Speed | 1,700 ± 200 RPM |
| Airflow | 50.1 CFM |
| Static | 1.27 mm-H₂O |
| Noise | 23.3 dBA |
| Fan Connector | 3-pin |
| Fan Specs (F120Q) | |
| Speed | 1,350 ± 150 RPM |
| Airflow | 60.2 CFM |
| Static | 1.05 mm-H₂O |
| Noise | 24.1 dBA |
| Fan Connector | 3-pin |
2-3 Days Delivery in Oman We offer express delivery to Muscat, Salalah, Seeb, Sohar, and other cities in Oman for NZXT H5 Flow RGB 2024 Edition Compact ATX Mid-Tower Airflow Case, 1x F360 RGB Core & 1x F120Q Pre-Installed Fan, SGCC Steel, Dark Tinted Tempered Glass Materials, White | CC-H52FW-R1. Best Price Guarantee We offer the best price for NZXT H5 Flow RGB 2024 Edition Compact ATX Mid-Tower Airflow Case, 1x F360 RGB Core & 1x F120Q Pre-Installed Fan, SGCC Steel, Dark Tinted Tempered Glass Materials, White | CC-H52FW-R1 in Oman. Buy now with the best price!
Specifications for NZXT H5 Flow RGB 2024 Edition Compact ATX Mid-Tower Airflow Case, 1x F360 RGB Core & 1x F120Q Pre-Installed Fan, SGCC Steel, Dark Tinted Tempered Glass Materials, White | CC-H52FW-R1
General
Brand
Model
- H5 Flow RGB 2024 Edition
Microless SKU
- 203741
Date first available
- 18 September, 2024
Shipping Weight
- 9.60 Kg
Shipping Dimensions
- 31.00 cm x 56.00 cm x 52.01 cm
Form Factor
- ATX Mid Tower
Side Window
- With Side Window
No. of Fans
- 2
Color
- Black
External 5.25 Inch Drive Bays
- None
Radiator Support
- Up to 360mm
