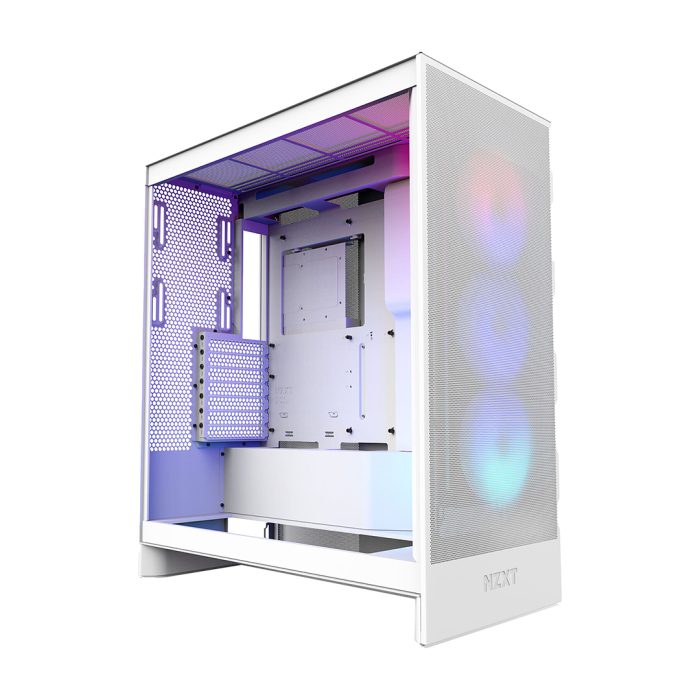

NZXT H7 FLOW RGB WHITE (2024) MODEL

59.00 OMR

In stock
SKU: 45891
Description

Overview

The H7 Flow RGB revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.
  • Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.
  • Comes equipped with a F360 RGB Core single-frame fan for exceptional out-of-the-box cooling and RGB lighting.
  • High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
  • Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.
  • Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
  • Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
  • Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
  • Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
A black PC case with a transparent side panel displays an interior space labeled Up to 3 x 120mm fans in a purple box near the bottom of the case.

Dedicated GPU Cooling

Supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.
A black NZXT computer case with three front fans, next to a separate F360 RGB Core fan unit displaying colorful LED lighting. A label points to the fan unit, stating Includes F360 RGB Core.

Large Radiator Support

Comes equipped with a F360 RGB Core single-frame fan for out-of-the-box cooling and RGB lighting.
A modern desktop PC with RGB lighting shows airflow: cool blue air enters from the front and bottom, and warm purple air exits from the top and back, highlighting efficient cooling inside the transparent case.

Optimized for Airflow

High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
A black computer case with RGB lighting shows labeled areas for cooling: Up to 360mm at the top and Up to 420mm at the bottom, highlighting radiator compatibility.

Large Radiator Support

Supports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.
A computer case with purple arrows indicating optimal cable management paths along the inside frame, guiding cables through various routing holes and channels for organized assembly.

Easily Manage Cables

Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
A computer case with RGB lighting displays labeled positions for 120mm and 140mm fans, and a 360mm radiator. Fans are shown at the top, front, and bottom, with purple and blue labels indicating their sizes.

10-Fan Capacity

Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
A close-up of a sleek black computer case with a mesh front panel, showing power button, two USB ports, a headphone jack, and part of an internal cooling fan.

Top I/O Ports

Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
An exploded view of a black computer case showing removable panels, frame, mesh front, three cooling fans, and internal compartments on a white background.

Tool-less Panel Access

Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
Tech Specs
Key Specs
Motherboard Support
E-ATX (Up to 277mm), ATX, Micro-ATX, Mini-ITX
Enclosure Type
Mid-Tower
Case Material
SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)
Dimensions
Height (With Feet)
544 mm
Width
244 mm
Depth
468 mm
Weight
11.13 kg
Compatibility & Clearance
CPU Cooler Height
Up to 185mm
GPU Length
Up to 410 mm
PSU Length
Up to 200 mm
Cable Management
Up to 34.5 mm
Top Mounted Radiator & Fan Combined Thickness
Up to 57 mm (140mm / 280mm)
Front I/O Ports
USB 3.2 Gen 1 Type-A
2
USB 3.2 Gen 2x2 Type-C (20 Gbps)
1
Headset Audio Jack
1
Expansion Slots
Standard
7
Vertical
0
Drive Bays
2.5"
2+2
3.5"
2
Fan Support
Front
3 x 120 mm / 3 x 140 mm (1 x F360 RGB Core included)
Top
3 x 120 mm / 2 x 140 mm
Bottom
3 x 120 mm
Rear
1 x 120 mm / 1 x 140 mm
Filters
High-Performance Mesh
Radiator Support
Front
Up to 420 mm
Top
Up to 360mm
Rear
Up to 140mm
