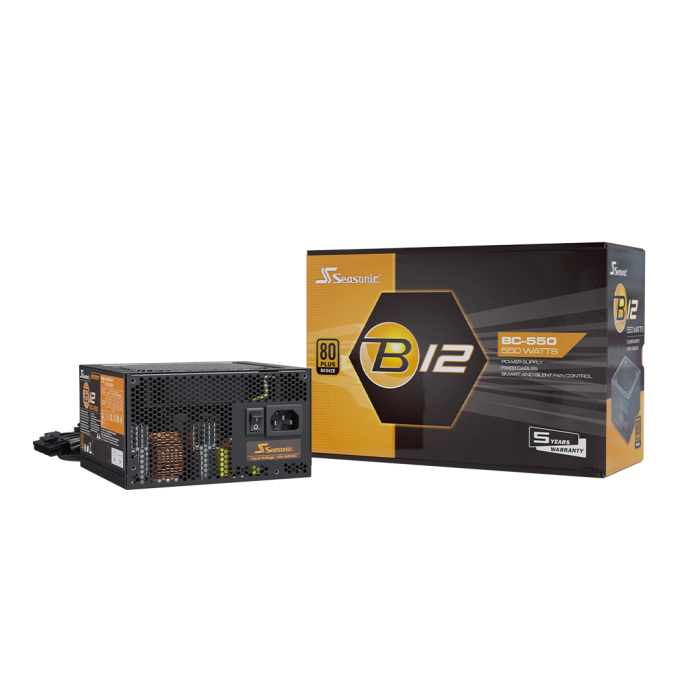

SEASONIC B12 BC 550W BRONZE POWER SUPPLY
Description
| 80PLUS® | Bronze | |
| Cybenetics Efficiency Level | TBA | |
| Cybenetics Noise Level | TBA | |
| Form Factor | ATX/EPS | |
| Dimensions | 140 × 150 × 86 mm | |
| Fan Information | Fan Size | 120 mm |
| Fan Control | Smart and Silent Fan Control | |
| Fan Bearing | Sleeve Bearing | |
| Cable Information | Modularity | Fixed Cables |
| Cable type | Flat Black Cables | |
| Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly) |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, OCP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, CE, FCC |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 5 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | 100 V - 240 V | |||||
| 10 A Max. | ||||||
| 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 15 A | 15 A | 45 A | 0.3 A | 2.5 A | |
| 100 W | 540 W | 3.6 W | 12.5 W | |||
| Total continuous power | 550 W | |||||
550 mm
MB (24/20 pins)
1 connector
1 cable
attached
600 mm
CPU (8/4 pins)
1 connector
1 cable
attached
700 mm
PCIe (8/6 pins)
2 connectors
1 cable
attached
570 mm
SATA
2 connectors
2 cables
690 mm
Molex
3 connectors
1 cable
attached
