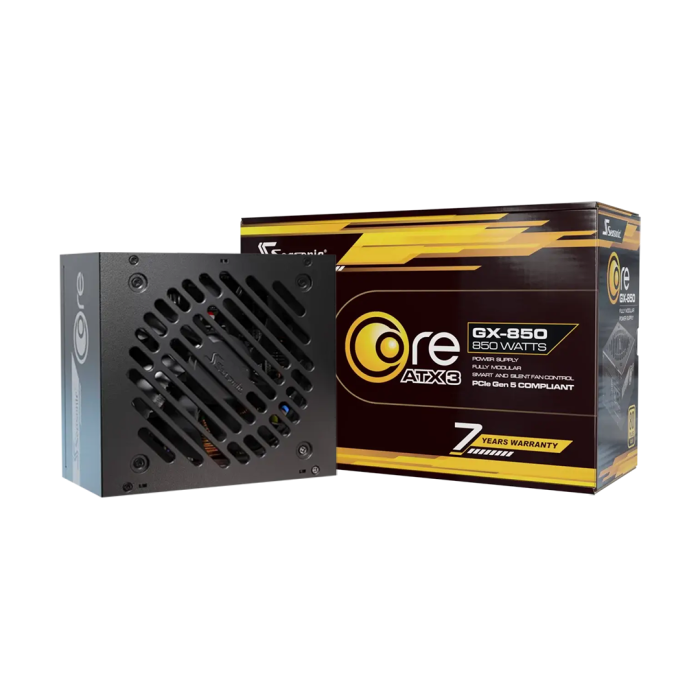

SEASONIC CORE GX 850W V2 PCIE 5.1 ATX 3.1 GOLD POWER SUPPLY
Description
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Gold | |
| Cybenetics Efficiency Level | Platinum | |
| Cybenetics Noise Level | A- | |
| Form Factor | ATX/EPS | |
| Dimensions | 140 × 150 × 86 mm | |
| Fan Information | Fan Size | 120 mm |
| Fan Control | Smart and Silent Fan Control | |
| Fan Bearing | Hydro Dynamic Bearing | |
| Life Expectancy | 25,000 hours at 40 °C, 15 % — 65 % RH | |
| Cable Information | Modularity | Fully Modular |
| Cable type | Individual Black Cables with Braided Pattern | |
| Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly) |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OCP, OPP, OTP, OVP, SCP, UVP | |
| Safety and Environmental | Safety and EMC | BSMI, C-tick, CB, CCC, CE, cTUVus, EAC, FCC, TUV, UKCA |
| Environmental Compliance | Energy Star, ErP Lot 6, REACH, RoHS, WEEE | |
| Warranty | 7 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | 100 V - 240 V | |||||
| 11 - 5.5 A | ||||||
| 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 20 A | 20 A | 70 A | 0.3 A | 3 A | |
| 100 W | 840 W | 3.6 W | 15 W | |||
| Total continuous power | 850 W | |||||
Specifications may change without prior notice.
610 mm
MB (24/20 pins)
1 connector
1 cable
750 mm
CPU (8/4 pins)
1 connector
2 cables
700 mm
12V-2x6 (12+4 Pins to 12+4 Pins)
1 connector
1 cable
750 mm
PCIe (8/6 pins)
1 connector
1 cable
700 mm
PCIe (8/6 pins)
2 connectors
1 cable
750 mm
SATA
3 connectors
2 cables
690 mm
Molex
3 connectors
1 cable
Specifications may change without prior notice.
Recommended 12V-2×6 Cable Installation
- BOTH 12V-2×6 connectors of your 12V-2x6 cable must always be plugged into your power supply, ensuring they are FULLY INSERTED, CLICK-LOCKED, and TIGHT.
- DO NOT bend or apply force to the cable after it is plugged into place.
