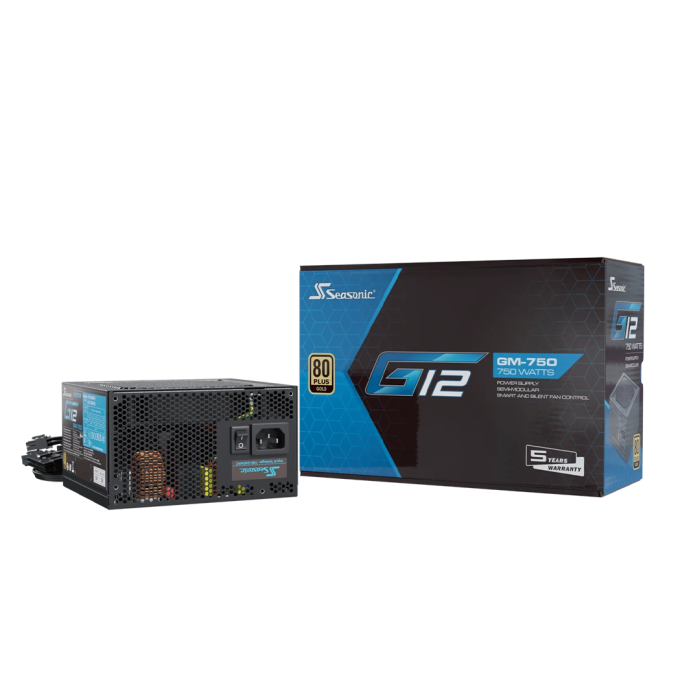

SEASONIC G12 GM 750W GOLD SEMI MODULAR POWER SUPPLY
SEASONIC G12 GM 750W GOLD SEMI MODULAR POWER SUPPLY
Description
| Technical Specifications |
| 80PLUS® |
Gold |
| Cybenetics Efficiency Level |
TBA |
| Cybenetics Noise Level |
TBA |
| Form Factor |
ATX/EPS |
| Dimensions |
140 × 150 × 86 mm |
| Fan Information |
Fan Size |
120 mm |
| Fan Control |
Smart and Silent Fan Control |
| Fan Bearing |
Sleeve Bearing |
| Cable Information |
Modularity |
Semi-Modular |
| Electrical Features |
Operating Temperature |
0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly) |
| MTBF @ 25 °C, excl. fan |
100,000 hours |
| AC Input |
Full Range |
| Protection |
OPP, OVP, OCP, SCP |
| Safety and Environmental |
Safety and EMC |
cTUVus, TUV, CB, CCC, BSMI, CE, FCC |
| Environmental Compliance |
Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Warranty |
5 Years |
| Power Output |
| AC Input |
100 V - 240 V |
| 9 - 4.5 A |
| 50 Hz - 60 Hz |
| DC Output |
Rail |
+3.3 V |
+5 V |
+12 V |
-12 V |
+5 VSB |
| Maximum Power |
20 A |
20 A |
62 A |
0.3 A |
2.5 A |
|
100 W |
744 W |
3.6 W |
12.5 W |
|
Total continuous power |
750 W |
