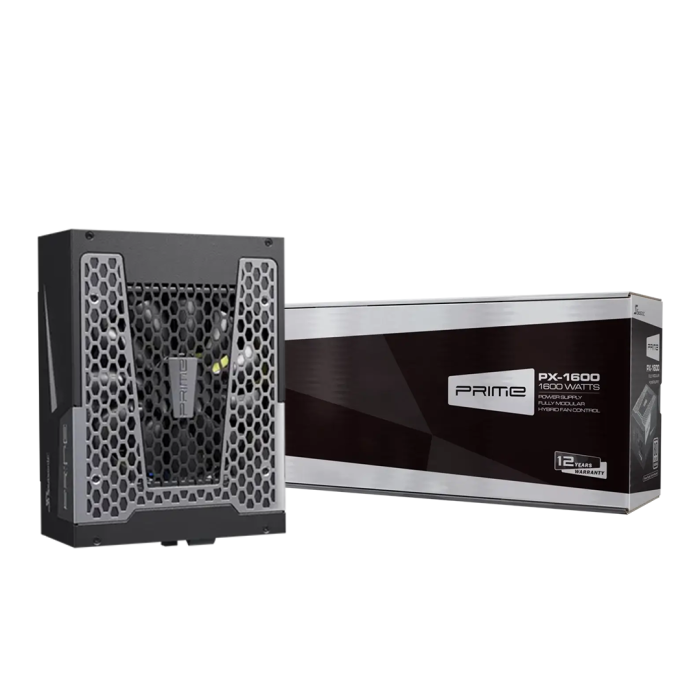

SEASONIC PRIME PX 1600W PCIE 5.0 PLATINUM POWER SUPPLY
SEASONIC PRIME PX 1600W PCIE 5.0 PLATINUM POWER SUPPLY
Description
| Technical Specifications |
| 80PLUS® |
Platinum |
| Cybenetics Efficiency Level |
TBA |
| Cybenetics Noise Level |
TBA |
| Form Factor |
ATX/EPS |
| Dimensions |
210 × 150 × 86 mm |
| Fan Information |
Fan Size |
135 mm |
| Fan Control |
Premium Hybrid Fan Control |
| Fan Bearing |
Fluid Dynamic Bearing |
| Life Expectancy |
50,000 hours at 40 °C, 15 % - 65 % RH |
| Cable Information |
Modularity |
Fully Modular |
| Electrical Features |
Operating Temperature |
0 - 50 °C |
| MTBF @ 25 °C, excl. fan |
100,000 hours |
| AC Input |
Full Range |
| Protection |
OPP, OVP, UVP, OCP, OTP, SCP |
| Safety and Environmental |
Safety and EMC |
cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance |
Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Warranty |
12 Years |
| Power Output |
| AC Input |
100 V - 240 V |
| 15 - 10 A |
| 50 Hz - 60 Hz |
| DC Output |
Rail |
+3.3 V |
+5 V |
+12 V |
-12 V |
+5 VSB |
| Maximum Power |
25 A |
25 A |
133.3 A |
0.5 A |
3 A |
|
125 W |
1600 W |
6 W |
15 W |
|
Total continuous power |
1600 W 115-240Vac, 1300 W 100-240 Vac |
