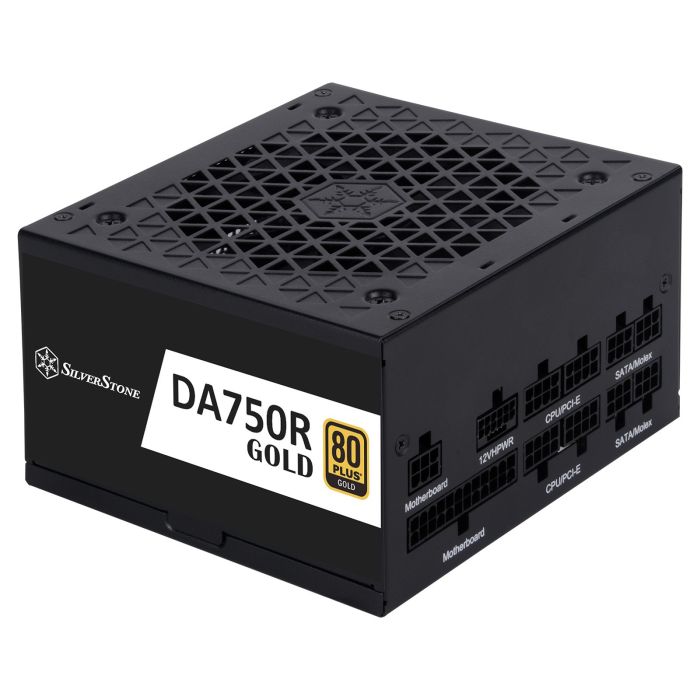

SILVERSTONE DA750R 750W GOLD PCIE 5.0 FULLY MODULAR
Description
Product Specifications
Product No.
SST-DA750R-GM
Model (safety certification)
SST-AX0750MCGD-B
Color
Black (lead-free paint)
Max. DC Output
750W
Power density
415W/L
Load Range
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max.(Amps) | 20A | 20A | 62A | 2.5A | 0.3A |
| Peak (Amps) | / | / | / | / | 3.0A |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±3% | ±3% | ±3% | ±3% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 40mV | 40mV | 60mV | 40mV | 80mV |
Combined +3.3V & +5V
110W
Combined +12V
744W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
≥87% & <89%
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
No load operation
Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
4 x 8 / 6-Pin PCIe connectors
1 x 12+4-Pin 12VHPWR connector
8 x SATA connectors
6 x 4-Pin Peripheral connector
2 x 4-Pin Floppy connector
Cooling System
120mm FDB fan
Noise Level
18 dBA minimum
Certification
80 PLUS Gold
Form factor
ATX (PS2)
Dimension
150mm (W) × 86mm (H) × 140mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)
Weight
1.44 kg
