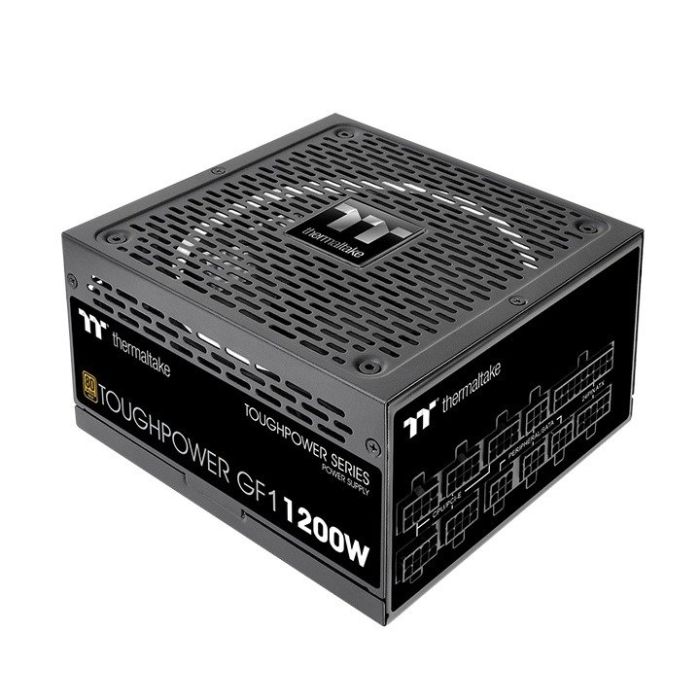

Toughpower GF1 1200W - 80 PLUS PLATINUM | FULLY MODULAR
Description
| WATTS | 1200W |
|---|---|
| FORM FACTOR | ATX |
| MODEL | TTP-1200AH3FCG |
| MAX. OUTPUT CAPACITY | 1200W |
| PEAK OUTPUT CAPACITY | 1440W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 150mm(W) x 86mm(H) x 160mm(D) |
| WEIGHT | 1.97kg |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-500 msec |
| HOLD UP TIME | > 16msec at 100% of full load |
| INPUT CURRENT | 15A |
| INPUT FREQUENCY RANGE | 50Hz - 60Hz |
| INPUT VOLTAGE | 100V – 240V~ |
| OPERATING TEMPERATURE | 0°C to + 50°C |
| OPERATING HUMIDITY | 20% to 90%,non-condensing |
| STORAGE TEMPERATURE | -20°C to + 70°C |
| STORAGE HUMIDITY | 5% to 95%, non-condensing |
| COOLING SYSTEM | 14cm hydraulic bearing fan |
| EFFICIENCY | Meet 80 PLUS®Gold at 115Vac input. |
| MTBF | 120,000 hrs minimum |
| SAFETY APPROVAL | CE/cTUVus/TÜV/FCC/BSMI/EAC |
| PCI-E CONNECTOR | 6 |
| PROTECTION | OCP, OVP, OPP, SCP, OTP |
